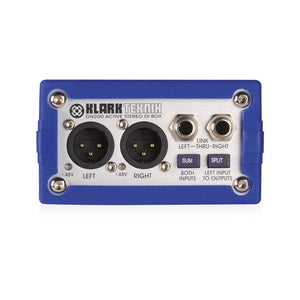

Klark Teknik DN200 2-Channel Active DI Box

The DN200 has become an established favorite amongst both engineers and musicians alike. With its high headroom, dynamic response and sonic clarity, DN200 faithfully reproduces the character of electric and acoustic instruments and allows far more of the detail of musical performances to be captured. DN200 is intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, and its innovative design results in a significantly higher clipping point than many other active DI Boxes, providing +10 dBu output into a 2 KΩ load. This increased headroom means that much higher-level input signals can be accommodated without the need for an attenuating pad. Combined with a very low noise input circuit topology, DN200 offers a very wide dynamic range, and only requires the -20 dB pad when connecting directly to instrument amplifier outputs or other very high-level sihttps://www.youtube.com/watch?v=wPRcsdrHZu4nal sources.

DN200 is built to handle the rigours of life on the road, a thick aluminium extrusion protects the electronics, and in turn is protected by tough silicone rubber corners

Features:

• 2-Channel Active DI box with high-headroom design and +48 V phantom power for extended dynamic range
• Sum and split options for flexible signal routing
• Fully transformer-isolated design ensures electrical separation between PA and stage equipment
• Balanced line inputs on Neutrik Combo* XLR and high impedance 1/4" TRS connectors
• Stereo input on 1/8" TRS for connection of consumer audio equipment
• Independent phantom powering for each channel for maximum reliability
• Global 20 dB input pad and earth lift switches
• Aluminium extrusion casing with protective rubber corners
• Compact and rugged design
