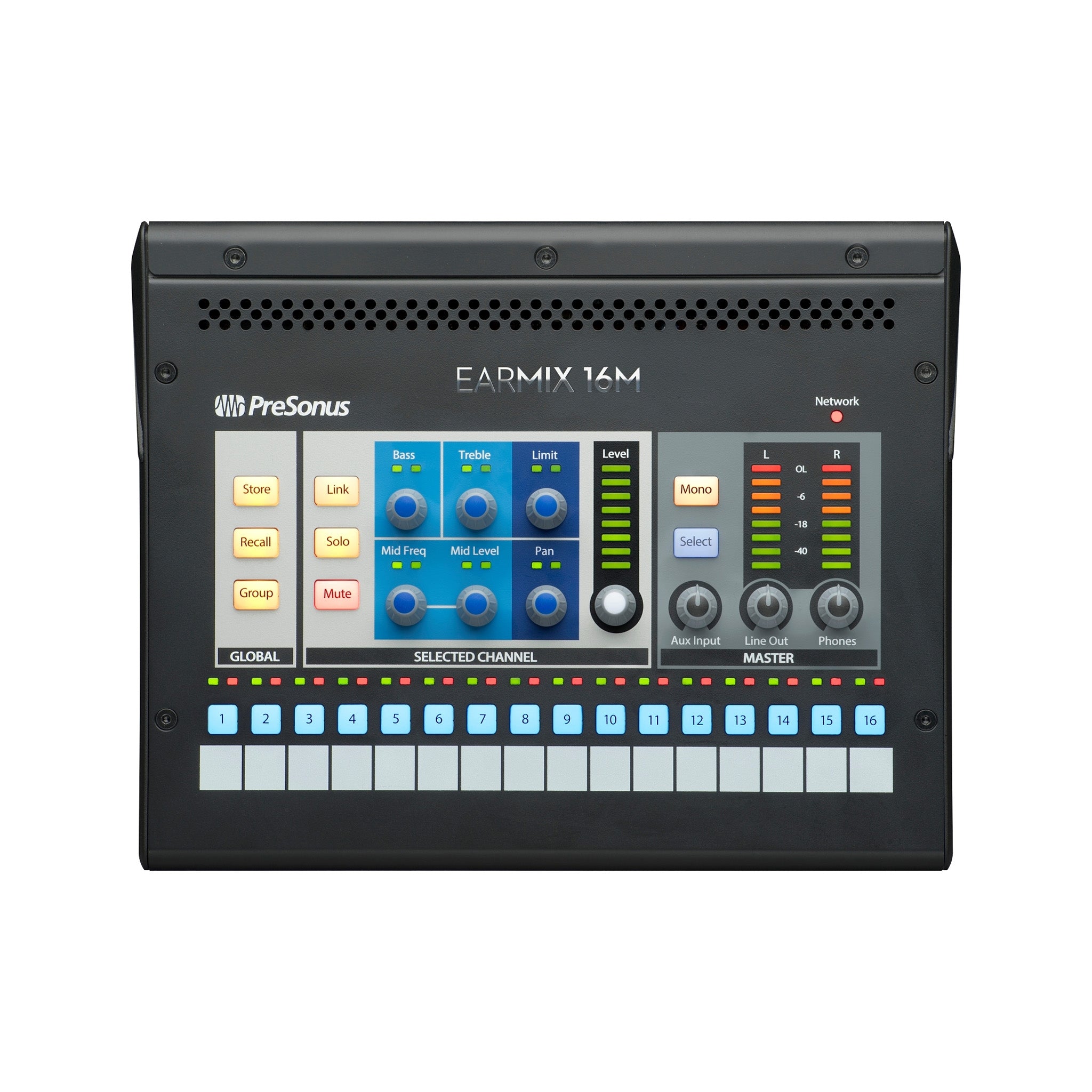

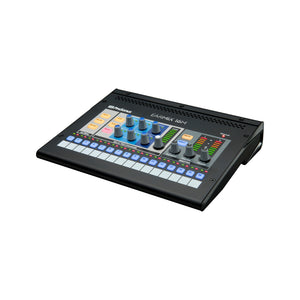

Presonus EarMix 16M AVB Personal Monitor Mixer
Presonus EarMix 16M AVB Personal Monitor Mixer
(Incl. Taxes & Shipping Cost)
Designed to work seamlessly with PreSonus' StudioLive Series III family of mixers, yet compatible with other AVB-enabled systems, the PreSonus EarMix™ 16M personal monitor mixer accepts 16 mono channels of input via AVB networking. An aux input admits an external source to the local mix. You get stereo channel linking and channel grouping, along with three-band EQ and limiting for each channel and the main mix, balanced ¼-inch TRS L/R outputs, and a loud, clear headphone amplifier that can drive low impedance devices such as high-quality in-ear-monitors. Two AVB jacks enable daisy chaining; network up to 24 units with a StudioLive Series III mixer. The EarMix 16M can be powered from the included external power supply or over Ethernet (PoE) from a compatible switch.
Features:
- 16x2 AVB-networked personal monitor mixer
- Loud, clear headphone amp that can drive low-impedance in-ear monitors
- 3-band EQ and limiter on all channels and main mix
- Stereo channel linking and channel grouping
- Support for PoE power

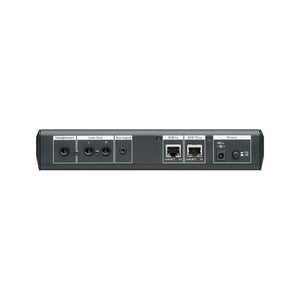

- 2 AVB Ethernet ports; network up to 24 units with a StudioLive Series III mixer
- Voltage: 100-120V
- Headphone Max. Output: 150 mW /Channel at 60 Ω
- Headphone Output Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Supported Sample Rates: 48 kHz, 44.1 kHz
- Includes: EarMix 16M Personal Monitor, 24V External Power Supply (for use with AVB switches that do not provide PoE), PreSonus Health Safety and Compliance Guide, EarMix 16M Quick Start Guide
- Dimensions: 9.4" (W) x 7.6" (D) x 1.8" (H)
- Weight: 0.5 kg / 1.2 lbs
